Hardware Built For Reality.

Robust. Precise. Connected.

Engineered by WaterMatica. We don't just assemble; we design and manufacture our own sensor technologies to ensure reliability in the harshest environments—from deep underground shafts to remote reservoirs.

Level & Environment Sensors

mmRadar Sensor
LEVEL SENSOR

mmRadar™ Level Sensor (79GHz)

The New Standard in Precision. Unlike ultrasonic sensors that fail under foam, vapor, or temperature changes, our 79GHz Millimeter-Wave (FMCW) technology sees through the noise to give you the exact level.

Water Utilities Industrial Water

Technical Specifications

Technology

79-81GHz FMCW Radar

Range

0.15m to 15m

Accuracy

1mm precision

Beam Angle

8° H / 7° V

Durability

-20°C to +80°C, IP68

Power

5 years battery life

Connectivity

NB-IoT / LoRaWAN / UART

Applications

Chemical tanks, wastewater

Learn More

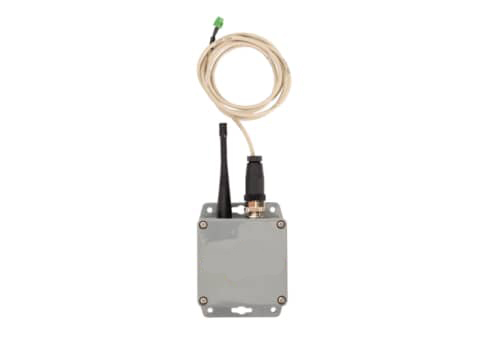

Smart Level Monitor
SMART MONITOR

SLM – Smart Level Monitoring Device

Industrial IoT solution with integrated hydrostatic level sensing technology for precise water level measurement in wells, reservoirs, and containment facilities.

Water Utilities Industrial Water Smart Agriculture

Technical Specifications

Communication

NB-IoT/LoRaWAN

Range

0-10m

Accuracy

±0.25% FS

Protection

IP68

Battery

Lithium (Long-life)

Temperature

-20°C to 70°C

Learn More
Smart Temperature Monitoring Device
TEMPERATURE MONITOR

STM – Smart Temperature Monitoring Device

Intelligent temperature data acquisition device with IP68 certification for indoor, outdoor, and underground environments with continuous monitoring.

Water Utilities Industrial Water Smart Agriculture

Technical Specifications

Communication

NB-IoT/LoRaWAN

Temperature Sensor

1 sensor, 0-50m cable

Accuracy

±0.25% FS

Protection

IP68

Operating Temp

-20°C to 70°C

Dimensions

82×80×55mm

Learn More
Smart Water Quality Monitoring Device
WATER QUALITY

SWM – Smart Water Quality Monitoring Device

Continuous water quality surveillance for lakes, rivers, reservoirs, and coastal zones with real-time measurement of temperature, pH, dissolved oxygen, and conductivity.

Smart Agriculture

Technical Specifications

Communication

NB-IoT/LoRaWAN

Sensors

T, pH, DO, ORP, EC

Data Interval

15-30-60-240 min

Protection

IP67 (IP68 optional)

Battery Life

2-4 years

Operating Temp

-20°C to 85°C

Learn More
Smart Soil Moisture Monitoring Device
SOIL MONITORING

SSM – Smart Soil Moisture Monitoring Device

Industrial IoT-enabled intelligent device for agricultural applications with IP68 certification, measuring soil moisture, EC, pH, and temperature.

Smart Agriculture

Technical Specifications

Communication

NB-IoT/LoRaWAN

Moisture Sensors

3 sensors, 0-100%

Accuracy

±1%

Protection

IP67 (IP68 optional)

Pulse Inputs

3 channels

Operating Temp

-20°C to 85°C

Learn More

Network Pressure & Flow Monitoring

Smart Hydrant Master
SMART HYDRANT

SHM – Smart Hydrant Master

Network Intelligence Disguised. The SHM looks exactly like a standard Hawle H8 fire hydrant, but it is a sophisticated IoT monitoring node.

Water Utilities Industrial Water Smart Agriculture

Technical Specifications

Function

Pressure, Flow, Usage Monitor

Installation

Direct replacement

Sensors

Pressure (0-20 Bar), Flow

Communication

NB-IoT / LoRaWAN

Battery

Lithium (10+ Years life)

Protection

IP69K (High-pressure)

Smart Quick Pressure Device
PRESSURE MONITOR

SQP – Smart Quick Pressure Device

Advanced IoT-enabled pressure monitoring solution designed for rapid and adaptable deployment across water distribution networks with Hawle ZAK fitting compatibility.

Water Utilities

Technical Specifications

Communication

NB-IoT/LoRaWAN

Range

0-20 bar

Accuracy

±1%

Protection

IP68

Battery

Lithium (Long-life)

Temperature

-20°C to 85°C

Learn More
Smart Pressure Monitoring Device
PRESSURE MONITOR

SPM – Smart Pressure Monitoring Device

IoT-enabled intelligent pressure monitoring solution for underground chambers, pumping facilities, and network junction points with dual pressure measurements and pulse signal reception.

Water Utilities Industrial Water Smart Agriculture

Technical Specifications

Communication

NB-IoT/LoRaWAN

Sensors

2x Pressure (0-20 bar)

Accuracy

±1%

Pulse Inputs

2 Channels

Protection

IP67 (IP68 optional)

Temperature

-20°C to 85°C

Learn More

Data Acquisition & Gateways

Smart General Use IoT Device
IOT DEVICE

SGU – Smart General Use IoT Device

A rugged and dependable data acquisition solution engineered for supervising sophisticated industrial infrastructure including potable water extraction wells, elevated storage facilities, and sewage treatment operations.

Water Utilities Industrial Water Smart Agriculture

Technical Specifications

Communication

NB-IoT/LoRaWAN

Analog Inputs

4 Channels (4-20mA/0-5V/0-10V)

Digital I/O

4 Channels (24 VDC)

Interface

Modbus RTU RS485

Temperature

-20°C to 85°C

Protection

IP54 Rating

Learn More
Smart Compact Quantity Monitoring Device
COMPACT MONITOR

SCQ – Smart Compact Quantity Monitoring Device

Intelligent data logger for acquiring and transmitting consumption data from Diehl water meters with IP68 certification for underground installations.

Water Utilities Industrial Water Smart Agriculture

Technical Specifications

Communication

NB-IoT

Pulse Types

Reed, Open Collector

Data Interval

5 minutes

Protection

IP68

Temperature

-20°C to +55°C

Dimensions

135×93.8×60mm

Learn More
Smart Water Quantity Monitoring Device
QUANTITY MONITOR

SQM – Smart Water Quantity Monitoring Device

IoT-enabled intelligent data acquisition device for capturing and transmitting flow meter readings with IP67/IP68 certified enclosure for underground installations.

Water Utilities Industrial Water Smart Agriculture

Technical Specifications

Communication

NB-IoT/LoRaWAN

Pulse Inputs

2 Channels

Data Interval

1 hour

Protection

IP67 (IP68 optional)

Battery

Lithium (Long-life)

Temperature

-20°C to 85°C

Learn More
Digital Signal Multiplier Device
SIGNAL MULTIPLIER

DSM – Digital Signal Multiplier Device

Enables an incoming pulse signal to be transmitted to two independent systems or data loggers simultaneously without modifying existing infrastructure.

Water Utilities Industrial Water Smart Agriculture

Technical Specifications

Output Types

Reed, Transistor, Optocoupled

Active Inputs

1 Channel

Outputs

2 Transistor Channels

Battery

2600 mAh

Protection

IP68

Dimensions

82×80×55mm

Learn More
Smart Vacuum System Monitoring Device
VACUUM MONITORING

SVM – Smart Vacuum System Monitoring Device

Specifically engineered for vacuum surveillance in vacuum-based wastewater collection systems with continuous monitoring and intelligent error notifications.

Water Utilities

Technical Specifications

Communication

NB-IoT/LoRaWAN

Vacuum Range

-1 bar to 0 bar

Accuracy

±1%

Protection

IP67 (IP68 optional)

Pulse Inputs

2 Channels

Dimensions

82×80×55mm

Learn More

Infrastructure Security

Smart Manhole Cover
MANHOLE SECURITY

SMC – Smart Manhole Cover

Total Asset Protection. A patent-pending security solution that transforms a passive manhole cover into an active alarm system. It replaces the standard locking mechanism.

Infrastructure Security

Technical Specifications

Tilt Sensor

Detects if cover is lifted

Vibration Sensor

Detects tampering attempts

Temperature Sensor

Monitors shaft environment

Operation

Instant alarm via NB-IoT

Battery

5-10 Years (signal dependent)

Security

Prevents theft, unauthorized access

Learn More

See Our Products in Action

Learn how our hardware integrates with our AI-powered platform to deliver actionable insights.

Explore Platform Request Demo
